- MSRP: $199,720
-
25ft long
-
Sleeps 2
-
3.5L Eco-Boost V6 - Twin Turbo
-
310 HP

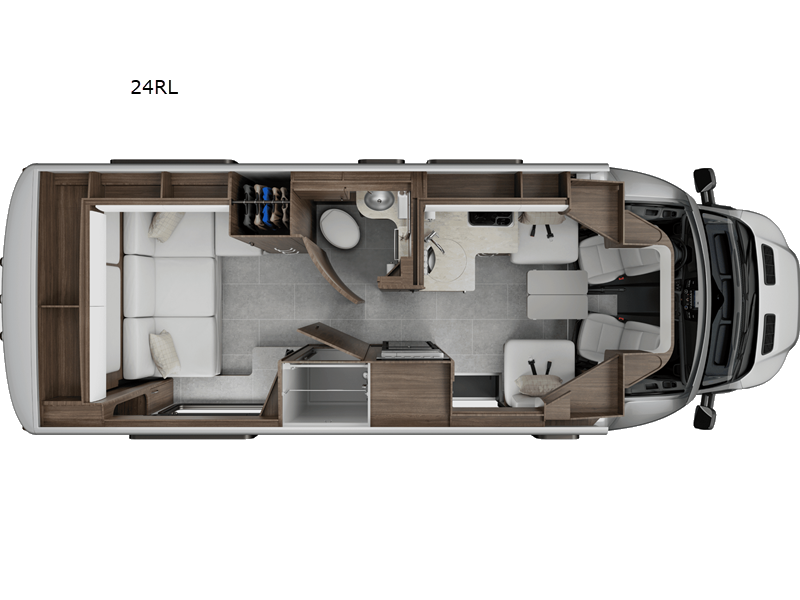

24RL Floorplan
Specifications
| Sleeps | 2 | Length | 24 ft 9 in |
| Ext Width | 7 ft 11 in | Ext Height | 10 ft |
| Int Height | 6 ft 5 in | Interior Color | Dove, Sand, Clay |
| Exterior Color | Euro Sport, Silver, Graphite, Shadow, Glacier, Atlantic Blue, White Suede, Champagne | Hitch Weight | 5000 lbs |
| GVWR | 11000 lbs | Fresh Water Capacity | 33.5 gals |
| Grey Water Capacity | 26.4 gals | Black Water Capacity | 35 gals |
| Furnace BTU | 20000 btu | Generator | 4.0kW Gas |
| Fuel Type | Gas | Engine | 3.5L Eco-Boost V6 - Twin Turbo |
| Chassis | Ford Transit 350 | Horsepower | 310 hp |
| Fuel Capacity | 25 gals | Wheelbase | 178 in |
| Available Beds | Murphy Bed | Torque | 400 ft-lb |
| Refrigerator Type | 12V Compressor Refrigerator w/Bottom Freezer | Refrigerator Size | 6.7 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 2 |
| Number of Awnings | 1 | LP Tank Capacity | 13.2 gals |
| Water Heater Type | Truma AquaGo Comfort Plus | AC BTU | 13500 btu |
| Basement Storage | 15 cu. ft. | TV Info | Two 27" TVs |
| Awning Info | Powered Box w/LED Lights | Shower Type | Standard |
| Electrical Service | 30 amp |
Description
PLACE YOUR ORDER TODAY! There is currently a 5-8 month backlog to order a new LTV Wonder model. We may have a few remaining '25 models in stock and we are now taking orders for 2026 models. Call us today and let us explain the ordering process for these fine Canadian built motorhomes.
Leisure Travel Wonder RL Class B plus gas motorhome highlights:
- Ford Transit 350HD chassis - RWD
- Optional AWD (All Wheel Drive)
- 3.5L-V6 EcoBoost twin turbo gas engine w/10 speed
- 4000e Gas Generator w/Auto Start feature
- Standard 270Ah or Optional 540Ah Smart Lithium Battery System
- 3,000w Inverter is wired to Truma Roof A/C
- Rear Lounge with pull-out Footrests
- Manual Murphy Bed over rear lounge
- Separate Lavatory and Shower
- Swivel Captain's Chairs
- Optional 440w Rooftop Solar System
- Pull-Out Pantry
- 2 TVs
*$199,720 price is for base model w/generator and RWD. The MSRP for a well equipped AWD Wonder RL would be $215,260. (Both prices are plus factory to dealer transport and dealer prep).
Based on 6/2/2025 LTV '26my Factory Pricing. Note: Pricing can change at any time with little notice. Final price is based on current pricing at time of shipping to dealer.
This coach combines comfort with versatility and convenience allowing you to travel wherever and whenever you want with your three favorite people! You will find seatbelts for four, a rear Murphy bed, and a removable front dinette area with an optional bed to sleep four. The rear offers a residential-style sectional lounge sofa with footrests and a swivel table to create a work station or another dining space. There are floor-to-ceiling windows for great views and natural lighting, and a 58" x 74" Murphy bed system giving you comfortable sleeping space at night. The galley offers a flip-down extension for more prep and serving space, a convection microwave oven, a flush mount LP cooktop with hinged glass cover, a garbage can, a pull-out pantry, and more to enjoy cooking while on the go. This unit is also available with optional intelligent All-Wheel Drive (AWD).
With any Leisure Travel Wonder Class B+ gas motorhome, the construction includes vacuum bonded aluminum framed insulated contoured sidewalls and a domed roof with fiberglass exterior, and a floor with composite exterior on a Ford Transit cutaway T-350 chassis. Some highlights include the 16" heavy-duty forged aluminum wheels w/TPMS, the auto high-beam headlamps, and the advance active safety features. The interior offers the SYNC 4 navigation system, curved soft close overhead cabinetry doors with hidden catches, full extension ball bearing soft close drawer tracks, LED aisle lighting and above cabinet hidden accent lights, and tile look vinyl flooring throughout for style and easy care. Don't just wonder where you want to go in style and luxury, choose your favorite Wonder coach and head out!
Features
Standard Features (2026)
Chassis
- Ford Transit Dual Rear Wheel Chassis (178" Wheelbase/11,000 lb. GVWR), 3.5 L Eco-Boost V6 Gas (310 HP/400 ft.·lb. Torque) with 10-Speed Automatic Transmission, Tow Haul Mode. Available with Optional Intelligent All-Wheel Drive (AWD).
- Adaptive Cruise Control
- Air Conditioning
- Alternator - 250 A
- Aluminum Alloy Wheels
- Concealed Locking Fuel Filler
- Driver and Passenger Exterior Courtesy Light
- Fog Lamps
- HID Headlamps
- Illuminated Sun Visors
- Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function
- Post-Collison Braking, Pre-Collision Assist with Auto Emergency Braking, Auto High Beam Headlamps, Lane Keeping System, Forward Collision Warning and Side Curtain Airbag
- Power Windows and Door Locks
- Power/Heated Exterior Mirrors with Convex and Turn Signal
- Privacy Drape in Cab
- Rear Hitch Receiver with 7-Pin Connector
- Rear View Mirror
- Removable Carpeted Floor Mat
- SYNC® 4 12" Touchscreen Multimedia Center with AM/FM/SiriusXM/Navigation/Rear View Camera
- Tire Pressure Monitoring System
- Ultraleather® Cab Seats with Armrests/Adjustable Lumbar Support/Recline, 4-way Manual, Swivel Bases
*Note: Due to ongoing supply constraints, some Ford Transit features shown may not be available on all chassis.
Vehicular
- Powder Coated Steel and Aluminum Undercarriage Support Structure
Construction
- Dinette Slide-Out (MBL)
- Frameless Tinted All Glass Awning Style Windows
- Vacuum Bonded Aluminum Framed Insulated Contoured Sidewalls with Fiberglass Exterior
- Vacuum Bonded Aluminum Framed Insulated Domed Roof with Fiberglass Exterior
- Vacuum Bonded Aluminum Framed Insulated Floor with Composite Exterior
Exterior
- Chrome Automotive Style “LTV” Branding
- Contoured Entrance Door with Screen Door and Window
- Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
- Illuminated Assist Handle
- Large Exterior Storage Compartment with Lights (MBL)
- Large Pass Through Exterior Storage Compartment with Bicycle/Cargo Slide (RTB)
- LED Patio Light
- Painted Color Matched Front Bumper
- Painted Fiberglass Running Boards and Flares
- Painted Full Body with Clear Coat
- Powered Retractable Entrance Step
- Water Pump Switch in Utility Center
Interior
- Coach Floor Extension
- Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
- Dry Chemical Fire Extinguisher
- Full Extension Ball Bearing Soft Close Drawer Tracks
- Illuminated Assist Handle
- LED Aisle Lighting and Above Cabinet Hidden Accent Lights
- LED Ceiling Lighting with Dimmer in Bedroom and Living Areas
- LED Recessed Strip Lighting Under Overhead Cabinets
- Opening Skylight with Screen and Shade
- Roller Shades
- Smoke, LP and CO Detectors
- Soft Vinyl Ceiling Headliner
- Tile Look Vinyl Flooring Throughout
Furniture
- Ultrafabrics® Dinette with Flexible Seating/Dining Arrangements (RL, RTB)
- Ultrafabrics® Leisure Lounge System Dinette with 2 Power Recliners and Easy Lift Table (MBL)
- Ultrafabrics® Rear Sofa with 2 Recliners (RL)
GalleyAccessory Rail
- Built-In Dish Drainer (MBL)
- Compressor Refrigerator Freezer – Double Door, 6.2 ft³
- Contoured Solid Surface Corian® Countertop
- Convection Microwave Oven
- Countertop Extension (RL, RTB)
- Countertop Small Appliance Storage Compartment (MBL)
- Garbage Can
- Induction Cooktop – 2-Burner
- Pull-Out Pantry
- Stainless Steel Backsplash
- Stainless Steel Undermount Sink with Sink Cover
Lavatory
- Accessory Rail
- Ceramic Macerator Toilet
- Curved Glass Shower Door (MBL)
- Flip Down Towel Bar in Shower
- Grab Handle in Shower
- Medicine Cabinet (RL, RTB)
- Retractable Self-Cleaning Shower Screen (RL, RTB)
- Robe Hook in Shower
- Shower Skylight
- Shower with Integrated Storage
- Stainless Steel Undermount Sink
- Water Pump Switch in Lavatory
Entertainment
- Exterior Cable TV Hookup
- Mobile Data/WiFi Extender with Integrated TV Antenna
- Satellite Dish Pre-Wire
- USB Outlets in Bed and Living Areas
Heating, Ventilating, and Air Conditioning
- Air Conditioner – Truma Aventa Eco 13,500 BTU Ducted with Soft Start and Heat Pump
- Furnace – 19,000 BTU (RL, RTB)
- Furnace – Truma Varioheat (MBL)
- Lavatory Fan and Galley Fan
Electrical
- 120-V GFCI Protected Receptacles (Patio, Galley, and Lavatory)
- 12-V Battery Disconnect
- 3000-W Pure Sine Inverter with up to 150-A Battery Charger
- 30' Power Cord – 30 A
- Battery – 270-Ah 12-V Smart Lithium with Internal Heating System
- Generator – 4.0 kW Gas with Auto Start and Auto Changeover Switch
- Multiplex Wiring Control System
- Rear Storage 12-V Power Receptacle (RTB)
- Surge Protector with Transfer Switch
Plumbing and LP Systems
- Antifreeze Pick Up Kit
- Black Tank Flushing System
- Contained Sewer Hose
- Exterior Shower
- In-line Shower Vacuum Breaker
- Liquid Propane Tank
- Multiple Water Pump Switches
- Quick-Connect Exterior Accessory LP Outlet
- Tank Level and Battery Voltage Monitoring
- Truma AquaGo Comfort Plus Water Heater
- Water Filtration System
- Water Heater Bypass Valve
- Water Selector Valve (City Water or Water Tank Fill)
Awnings Packages
- Powered Legless Box Awning with Wind Sensor and LED Lights
- Slide Topper Awning (MBL)
Certifications
- Canadian Certification – Mandatory for Canada
- RVIA Certification
Optional Equipment
- AWD – Ford Transit Chassis with Intelligent All-Wheel Drive
- Battery Upgrade – Additional 270-Ah 12-V Smart Lithium with Internal Heating System (540-Ah total)
- Black Accent Package – Black Exterior Badging & Assist Handle, Black Interior Fixtures & Hardware
- Exterior Ladder
- Exterior Table
- Front Dinette Inflatable Mattress Kit (RL, RTB)
- Macerator – Termination with Manual Disconnect
- Overhead Cabinet Door Upgrade – Crystal White (Matte Finish)
- Removable Front Table between Captain’s Chairs (MBL)
- Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
- Solar Panels – 440-W Rigid Low-Profile
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
