Image #1 - New 2026 Pleasure-Way Plateau XLTW Std. Model Motor Home Class B+ - Diesel - Stock #PW-PXLTW
-
Image #2 - New 2026 Pleasure-Way Plateau XLTW Std. Model Motor Home Class B+ - Diesel - Stock #PW-PXLTW - Floorplan
-
Image #3 - FACTORY SAMPLE PHOTO - Stock #PW-PXLTW
-
Image #4 - New 2026 Pleasure-Way Plateau XLTW Std. Model Motor Home Class B+ - Diesel - Stock #PW-PXLTW
-
Image #5 - New 2026 Pleasure-Way Plateau XLTW Std. Model Motor Home Class B+ - Diesel - Stock #PW-PXLTW
-
Image #6 - New 2026 Pleasure-Way Plateau XLTW Std. Model Motor Home Class B+ - Diesel - Stock #PW-PXLTW
+6 -
23ft long
-
Sleeps 2
-
4-Cylinder OM 654 High Output
-
211 HP

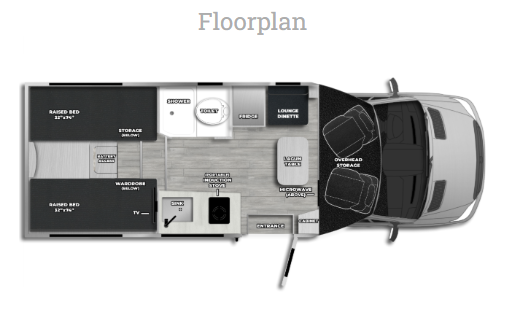

Std. Model Floorplan
Specifications
| Sleeps | 2 | Length | 22 ft 9 in |
| Ext Width | 7 ft 11 in | Ext Height | 10 ft 9 in |
| Int Height | 6 ft 8 in | Interior Color | Flint w/White Smoke Cabinets |
| Exterior Color | Silver Metallic | Hitch Weight | 4220 lbs |
| GVWR | 11030 lbs | Fresh Water Capacity | 28 gals |
| Grey Water Capacity | 25 gals | Black Water Capacity | 25 gals |
| Tire Size | LT215/85R16 | Furnace BTU | 11500 btu |
| Generator | 2.5 kW Onan QG 2500i LP | Fuel Type | Diesel |
| Engine | 4-Cylinder OM 654 High Output | Chassis | Mercedes-Benz 3500 Cab Chassis |
| Horsepower | 211 hp | Fuel Capacity | 24.5 gals |
| Wheelbase | 170 in | Available Beds | Rear Twin Beds |
| Torque | 332 ft-lb | Refrigerator Type | 12V Norcold Refrigerator/Freezer |
| Refrigerator Size | 5.3 cu ft | Cooktop Burners | 1 |
| Number of Awnings | 1 | Axle Weight Front | 4410 lbs |
| Axle Weight Rear | 7720 lbs | LP Tank Capacity | 10.4 gals |
| Water Heater Type | Truma AquaGo Comfort Plus | AC BTU | 13500 btu |
| Basement Storage | 64 cu. ft. | TV Info | Smart LED TV |
| Awning Info | Fiamma Power w/LED Lights | Gross Combined Weight | 15250 lbs |
| Shower Type | Wet/Bath Shower | Electrical Service | 30 amp |
Description
Pleasure-Way Plateau XLTW Class B+ diesel motorhome highlights:
- Mercedes-Benz Sprinter 3500 - RWD
- 2.0L-i4 turbo diesel engine w/9 speed transmission
- 5 Year/75k Mercedes Extended Warranty Included & 5y/100k on Powertrain
- 2,500w LP Gas Generator w/Auto Start System
- 3,000w Inverter will power the Truma Air Conditioner for 5-10 hours, or more, from fully charged 600Ah batteries, before a recharge is required from; Driving, Generator, or plugging in to 120v power.
- 500w Rooftop Solar (5 x 100w)
- Raised Rear Twin Beds with large cargo storage below
- Private Wet Bath
- Induction Stove - 110v (movable to outdoors)
- Overhead Cab Storage
- Sleeps 2 in 2 beds
ON ORDER! Call for ETA.
Start planning your next trip across the states in this well-appointed coach! The power and heated swivel captain's seats can become a part of the living areas once you're parked, and there is a 3 person lounge dinette with a lagun table for dining space. An induction cooktop and microwave oven will let you make meals for your crew, and the 5.3 cu. ft. 12V Norcold refrigerator/freezer will keep cold items fresh. The private wet bath features a handheld showerhead, a Corian countertop and backsplash, and an awning style opening window with a shade to let fresh air in. When you're ready to turn in for the night, the rear twin beds sure to bring comfort, and the bedroom Smart TV here will let you watch a late-night movie in bed!
The Plateau XLTW by Pleasure-Way is the newest Class B+ diesel motorhome in their widebody product line! With 600 amp hours of lithium coach batteries, a 3,000-watt inverter, and a 500-watts of solar power so you can stay off-grid for longer periods of time. You will love the look of the exterior painted plastic moldings, along with the Alcoa Dura-Bright aluminum wheels and sleek full-body paint. There is also a Fiamma power awning, an automatic power entrance step, and a garage storage compartment to name a few exterior conveniences. Once inside, you can enjoy the premium vinyl flooring, blackout roller shades, Baltic Birch drawer boxes, plus Corian solid surface countertop and backsplash.
Features
Standard Features (2026)
Entertainment
- 24” Smart LED TV w/ swing out mount
- Bose® soundbar w/ Bluetooth®
- Winegard® Rayzar® Automatic HDTV antenna
- USB-A & USB-C charging ports
Interior
- LED accent lighting
- Blackout roller shades w/ magnetic catch
- Folding privacy/sun shades for windshield & cab door windows
- Screen entry door
- Lagun table mount in front living space
- Radius Laminate cabinet doors
- Positive locking door latches
- Blum® cabinet hinges and door stays
- Recessed LED lighting under cabinets and along roof
- Wardrobe w/ hanging rod
- Laminate-wrapped kitchen, wall partitions and cabinet boxes
- Vinyl soft touch headliner
- Premium vinyl flooring
- Acoustic wall paneling
- 3M™ Thinsulate™ insulation inside walls
- Foil-faced fiberglass insulation along roof
- Fire extinguisher
- LP, CO & Smoke detectors
Galley
- 12V, 5.3 cu.ft. Norcold refrigerator/freezer
- 1-burner induction cooktop
- Microwave
- Large undermount stainless steel sink w/ Corian® cover
- Matte Black Moen High-arc faucet w/ pull-out sprayer
- Corian® solid surface countertop & backsplash
- Full extension ball bearing drawer glides w/ soft close
- Baltic birch drawer boxes
Bathroom
- Large private wet bathroom
- Handheld showerhead
- Corian® countertop and backsplash
- Vanity w/ storage shelves
- Stainless steel sink
- Single-handle faucet
- Residential-style ceramic bowl toilet w/ foot flush
- Awning style opening window w/ privacy shade
- Towel rack
- 110-120 volt GFCI power outlet
Electrical
- Dual 10-inch touchscreen control panels
- 600Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
- Internal/automatic coach battery heating system for cold weather protection
- Xantrex Freedom XC Pro 3000-Watt True Sine Wave Inverter/Charger
- 100-amp lithium charger
- 500-Watt Go Power!® solar package
- Go Power!® MPPT solar controller
- 2.5 KW Onan® QG 2500i LP generator
- Automatic generator start (AGS)
- Mastervolt DC/DC charger
- Multiplex wiring
- Dimmable LED lighting
- 12-volt coach battery disconnect
- Charge line disconnect (solar and alternator)
- 30-amp power cord
- AC distribution panel
- DC load center
Touchscreen Control Panel
- Upgraded resolution for wider viewing angles
- 10-inch full-color display
- Integrated inverter controls
- Coach battery state-of-charge meter
- Coach battery temperature gauge
- Estimated time until full charge read-out
- Remaining runtime for DC power read-out
- Real-time 12-volt net loss/gain amperage meter
- Solar charger controls and monitoring
- Tank level monitoring – LP, fresh, grey and black
- Climate control center w/ thermostat for A/C, vent and furnace
- Truma AquaGo® comfort plus water heater controls
- Dimmable LED light banks
- Water pump, awning, sofa and vent controls
- Generator start/stop and automatic generator start (AGS)
- DC electrical system diagnostics
- Dark and light viewing modes
Exterior
- Fiamma® power awning w/ LED lights
- LED porch light
- Awning style frameless windows
- 110-120 volt power outlet
- Utility center (LP switch, cable TV hook-up, 30-amp power outlet, city water connection)
- Exterior shower w/ handheld wand
- Fiberglass running boards
- Appliance access panels painted to match exterior color
- Painted plastic moldings and front bumper
- Full-size entry door w/ separate screen door
- Automatic power entrance step
- Passenger storage compartment w/ locking aluminum door
- Passenger rear storage compartment w/ locking door
- Driver storage compartment w/ locking aluminum door
- 64 cubic feet garage storage compartment w/3 locking doors
Heating, Ventilation, & Cooling
- Truma VarioHeat 11,500 BTU Furnace
- Power lift Dometic Fan-Tastic Vent fan w/ rain sensor
- Truma Aventa Eco 13,500 BTU air conditioner
Plumbing & Liquid Propane Systems
- Shurflo® automatic demand water system
- Truma AquaGo® comfort plus instant water heater
- Water heater bypass valves
- Monitor panel for LP, fresh, grey and black tanks
- Sewer discharge center w/ black and grey water gate valves
- Low point drain for water lines
- LP tank w/ electric shut off switch
- LP BBQ quick connect
Cab Conveniences
- Driver and passenger power and heated swivel seats
- Mercedes-Benz leather
- Four-way lumbar support
- Power adjustments
- Memory settings
- Three-stage heating controls
- MBUX Multimedia System w/ 10" Touchscreen
- Navigation
- Bluetooth® connectivity w/ audio streaming
- “Hey Mercedes” voice control
- Smartphone integration w/ hands-free function
- Multimedia interface w/ USB-C ports
- Smartphone wireless charging tray
- Keyless ignition
- Rear view camera system
- Air conditioning
- Power windows, door locks and mirrors
- Tilt / telescopic steering wheel
- Chassis battery quick-disconnect
- Overhead control panel w/ 2 reading lights
Safety
- Airbags – driver and passenger
- Attention Assist
- Active Brake Assist
- Active Distance Assist Distronic
- Active Lane Keeping Assist
- Crosswind Assist
- Hill Start Assist
- Traffic Sign Assist
- Wet wiper system w/ rain sensor
- LED high performance headlamps
- Tire repair kit w/ air compressor and repair liquid
- Locking fuel fill
Widebody Superstructure
- Steel-framed roof, walls and floor
- Sikaflex® bonded fiberglass walls
- One-piece moulded fiberglass roof
- Full-body Glasurit® paint
- LED tail and marker lights
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
